Description –

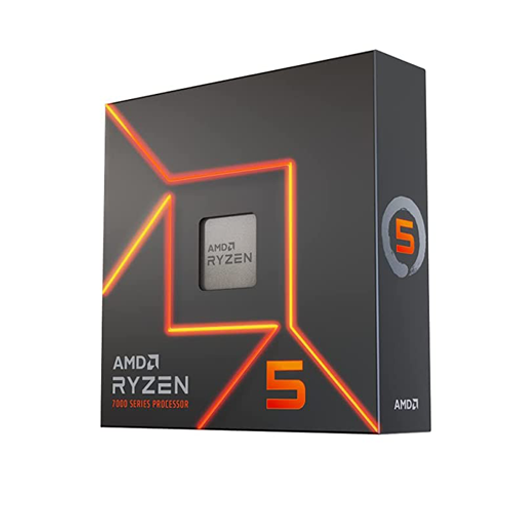

AMD Ryzen 5 7600X Processor With Radeon Graphics

• Platform: Desktop
• Market Segment: Enthusiast Desktop
• Product Family: AMD Ryzen™ Processors
• Product Line: AMD Ryzen™ 5 Desktop Processors
• Former Codename: “Raphael AM5”
• Architecture: Zen 4
• Cores/Threads: 6 Cores, 12 Threads
• Max Boost Clock: Up to 5.3GHz
• Base Clock: 4.7GHz
• Cache Configuration: L1 Cache – 384KB, L2 Cache – 6MB, L3 Cache – 32MB
• Default TDP: 105W
• Manufacturing Process: TSMC 5nm FinFET for CPU cores, 6nm FinFET for I/O die
• Socket Compatibility: AM5
• Package Die Count: 2

Performance Features

The Ryzen 5 7600X is designed for maximum performance, featuring:

• Multithreading (SMT): Yes, enhancing multitasking capabilities.
• Unlocked for Overclocking: Yes, allowing users to push performance beyond stock specifications.
• Boost Technology: Precision Boost 2 for dynamic performance scaling.
• AMD EXPO™ Memory Overclocking Technology: Yes, ensuring optimal memory performance.
• Max Operating Temperature (Tjmax): 95°C, allowing for effective thermal management under load.

Connectivity

Connectivity options on the Ryzen 5 7600X include:

• USB Type-C® Support: Yes
• Native USB Ports: 4 x USB 3.2 Gen 2 (10Gbps), 1 x USB 2.0 (480Mbps)
• PCIe® Lanes: 28 total, 24 usable
• NVMe Support: Boot, RAID0, RAID1, RAID10
• Max Memory Capacity: 128GB with support for UDIMM
• Max Memory Speed: 5200 MT/s

Graphics Capabilities

• Integrated Graphics: Yes, with AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz, providing solid performance for non-demanding applications.

Warranty and OS Support

• • Warranty: 3 Years
  • Operating System Support: Compatible with Windows 10/11, RHEL, and Ubuntu (64-bit)

AMD Ryzen 5 7600X Processor is one of the best processors.
