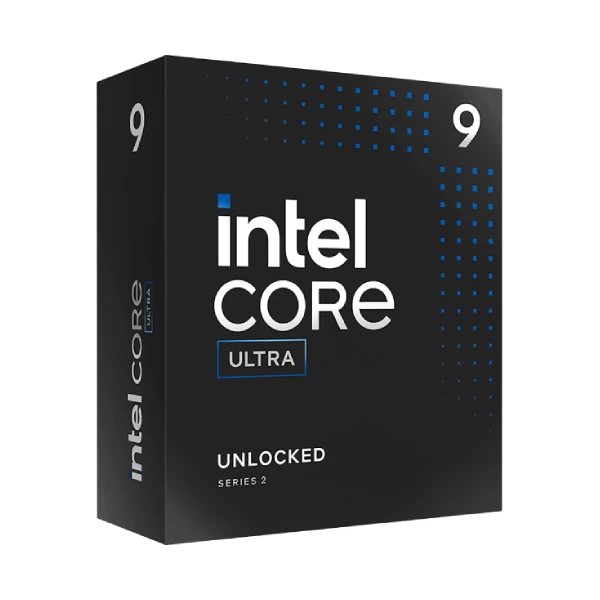

Intel Core Ultra 9 285K Processor

• Product Collection: Intel Core Ultra Processors (Series 2)
• Code Name: Arrow Lake (Formerly)
• Segment: Desktop

CPU Specifications

• Total Cores: 24 (8 Performance-cores + 16 Efficient-cores)
• Total Threads: 24
• Max Turbo Frequency: 5.7 GHz
• Thermal Velocity Boost Frequency: 5.7 GHz
• Turbo Boost Max Technology 3.0 Frequency: 5.6 GHz
• Performance-core Max Turbo Frequency: 5.5 GHz
• Efficient-core Max Turbo Frequency: 4.6 GHz
• Base Frequencies: 3.7 GHz (P-cores), 3.2 GHz (E-cores)
• Cache: 36 MB Intel Smart Cache, 40 MB L2 Cache
• Base Power: 125 W
• Max Turbo Power: 250 W
• Lithography: TSMC N3B
• AI Support: Intel DL Boost, AI frameworks like OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Memory Specifications

• Max Memory Size: 192 GB
• Memory Type: DDR5 up to 6400 MT/s
• Max Memory Channels: 2
• ECC Memory Support: Yes

GPU Specifications

• GPU Name: Intel Graphics
• Base Frequency: 300 MHz
• Max Dynamic Frequency: 2 GHz
• Xe-cores: 4
• Peak TOPS (Int8): 8
• Graphics Output: DP2.1, HDMI2.1, eDP1.4b
• Max Resolutions:
  • 4K @ 60Hz (HDMI, eDP)
  • 8K @ 60Hz (DP, HDMI)
• DirectX Support: 12
• OpenGL Support: 4.5
• OpenCL Support: 3.0
• Displays Supported: 4

NPU Specifications

• NPU Name: Intel AI Boost
• Peak TOPS (Int8): 13
• Sparsity Support: Yes
• AI Framework Support: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

• DMI Revision: 4 (8 lanes)
• PCIe Revision: 5.0 & 4.0
• PCIe Configurations: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
• PCIe Lanes: 24
• Thunderbolt 4: Yes

Package Specifications

• Socket: FCLGA1851
• Thermal Solution: PCG 2020A
• Max Operating Temperature: 105°C

Advanced Technologies

• Intel Thread Director
• Intel Speed Shift & SpeedStep Technologies
• Intel Turbo Boost Technologies (2.0, 3.0)
• Intel Gaussian & Neural Accelerator 3.5
• Intel VMD, DL Boost, AMT, RPE, One-Click Recovery
• Virtualization Support: VT-x, VT-d, VT-rp, EPT
• Security: Intel Control-Flow Enforcement, Hardware Shield, Boot Guard, AES-NI, TME-MK

Warranty & Notes

• Warranty: 3 Years
• Note: Specifications subject to change without notice; images for representation only.

Intel Core Ultra 9 285K Processor is one of the best processors.
