Description –

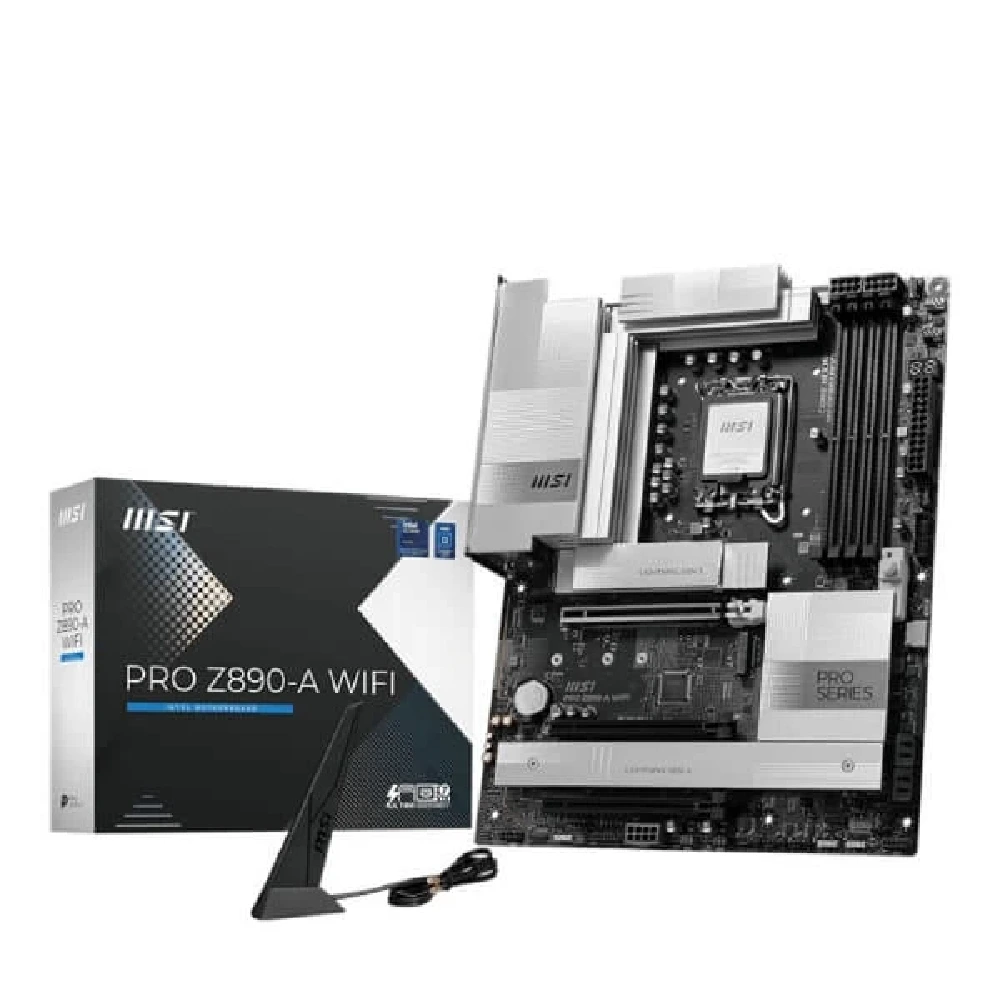

MSI Pro Z890-A WIFI Motherboard

• Model: PRO Z890-A WIFI
• Chipset: Intel Z890
• CPU Compatibility: Supports Intel Core Ultra Processors (Series 2), LGA 1851

Memory

• Slots: 4x DDR5 UDIMM
• Maximum Capacity: 256GB
• Memory Support:
  • Overclocking: 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
  • Max. speeds:
    • 1DPC 1R: up to 9200+ MT/s
    • 1DPC 2R: up to 7200+ MT/s
    • 2DPC 1R/2R: up to 4800+ MT/s
• Additional Features:
  • Supports Intel POR Speed and JEDEC Speed
  • Intel® XMP 3.0 for memory overclocking
  • Dual-Channel mode, Non-ECC, Un-buffered memory
  • CUDIMM support
  • DIMM slots with single-sided latches

Onboard Graphics

• HDMI: 1x HDMI (HDMI™ 2.1, max resolution 4K 120Hz)
• Type-C DisplayPort: 2x (Thunderbolt™ 4, supports DisplayPort 2.1, 4K@120Hz / 8K@60Hz)

Expansion Slots

• PCI-E x16 Slots: 3x
  • PCI_E1 (Gen 5.0, up to x16 from CPU)
  • PCI_E2/E3 (Gen 4.0, up to x4 from Chipset)

Audio

• Chip: Realtek ALC1220P
• Channels: 7.1-Channel High Definition Audio, S/PDIF output

Storage

• M.2 Slots: 4x (supports various configurations and speeds)
• SATA Ports: 4x SATA 6G
• RAID Support: RAID 0, 1, 5, and 10 for SATA and NVMe

Thunderbolt

• Ports: 2x Thunderbolt 4 (up to 40Gbps)

USB Ports

• Total Ports: Multiple USB 2.0, USB 3.2, and USB Type-C connections
• Fast Charging: USB 20Gbps Type-C supports USB PD 27W

Networking

• LAN: Realtek 8126 5Gbps
• Wireless: Intel Wi-Fi 7 (5.8Gbps) and Bluetooth 5.4

Internal I/O

• Includes connectors for power, cooling, RGB, and USB
• LED Features: 4x EZ Debug LED, 1x EZ Digit Debug LED

Additional Information

• Form Factor: ATX (243.84mm x 304.8mm)
• Warranty: 3 Years
• OS Support: Windows 11 64-bit
• Box Content: Quick installation guide, SATA cables, EZ M.2 clips, Wi-Fi antenna

Note: Features, specifications, and pricing are subject to change without notice.
